IP65 & IK08 LED Linear High Bay HL22 photocell/ Microwave Motion sensor available
  • LED Linear High Bay-HL22 Series
  • HL22
  • LED Linear High Bay-HL22 Series
  • HL22

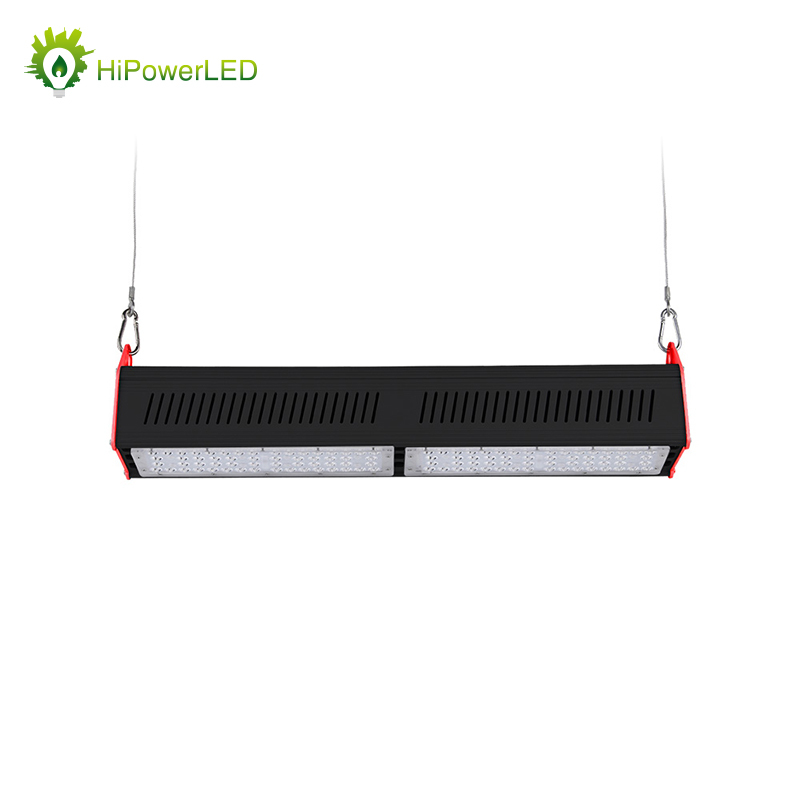

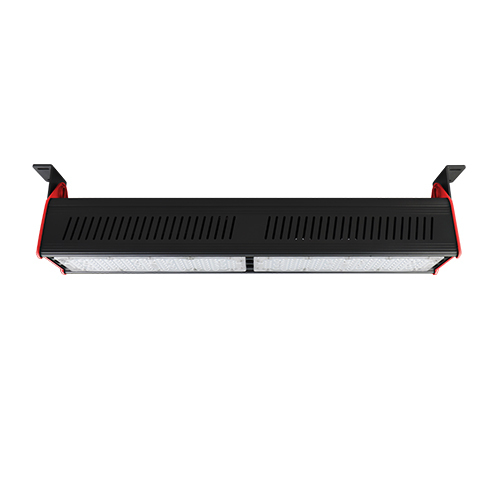

LED Linear High Bay-HL22 Series

No.00097
  • Hollow-Carved design
  • Ensure low temperature in the central area
  • lighter heat sink but good heat dissipation,
  • so surprised prices.
  • MAX 500W
  • 6 types lens, meet different lighting requirements.
  • 5 years warranty
Power:
50W
100W
150W
200W
250W
400W
500W
CCT:
3000K
4000K
5000K
5700K
6500K
  • Description
  • Details
  • Specification
  • Certification
  • Video


Application:

Warehouses, libraries, workshops, shopping malls, supermarkets, shops, restaurants, sports centers, cinemas, hospitals, clothing stores, bars and other indoor lighting places.

Model

SPS50-HL22

SPS100-HL22

SPS150-HL22

SPS200-HL22

SPS250-HL22

SPS400-HL22

SPS500-HL22

Wattage

50W

100W

150W

200W

250W

400W

500W

Lumen Output

7500lm

15000lm

22500lm

30000lm

37500lm

60000lm

75000lm

Luminous Efficacy

150lm/W

CCT

3000K/4000K/5000K/5700K/6500K

CRI

Ra≥70 (Ra≥80 optional)

Input Voltage

100-277 VAC

Housing Color

Sliver

Housing Material

Aluminum(ADC12), PC

Operating Temperature

-30°C to +45°C

IP Level

IP65

Lifespan

100,000 hours

Warranty

5 years
